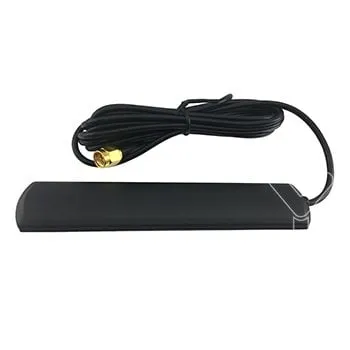

2.4GHz Glass Mount Antenna with SMA Male Connector Details 2

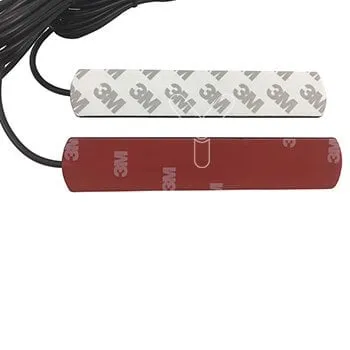

2.4GHz Glass Mount Antenna with SMA Male Connector Details 3

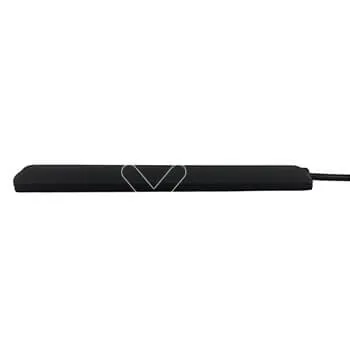

2.4GHz Glass Mount Antenna with SMA Male Connector Details 4

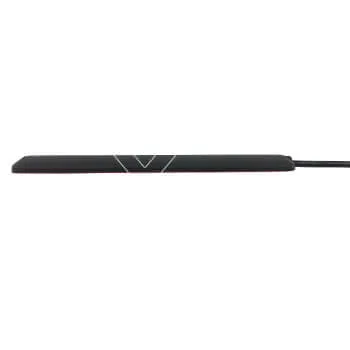

2.4GHz Glass Mount Antenna with SMA Male Connector Details 5

Wi-Fi/2.4G Glass Mount Aerial with SMA Connector

P/N: YCWS116 (WiFi/2.4G)
P/N: YC5GA116 (5G)
P/N: YC4E116 (4G)
P/N: YC3G116 (3G)
GET A QUOTE
Parameter Value Unit
Frequency 2400-2500 MHz
Impedance 50 Ω
VSWR ≤2
Polarization Linear
Gain 3 dBi
Connector Type SMA or Custom
Cable Type RG174
Mounting Style Adhesive
Dimensions 116 L x 22.03 W x 5.4 H for Red 3 M Adhesive

116 L x 22.07 W x 6.53 H for White 3M Adhesive

 mm

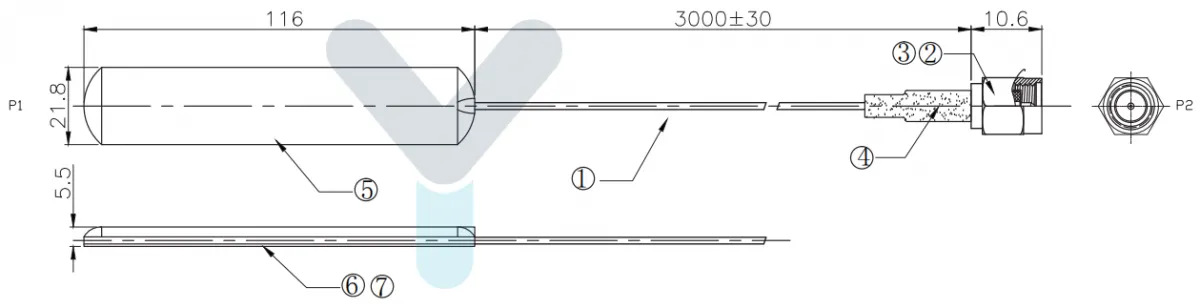

Dimensions_YCWS116
