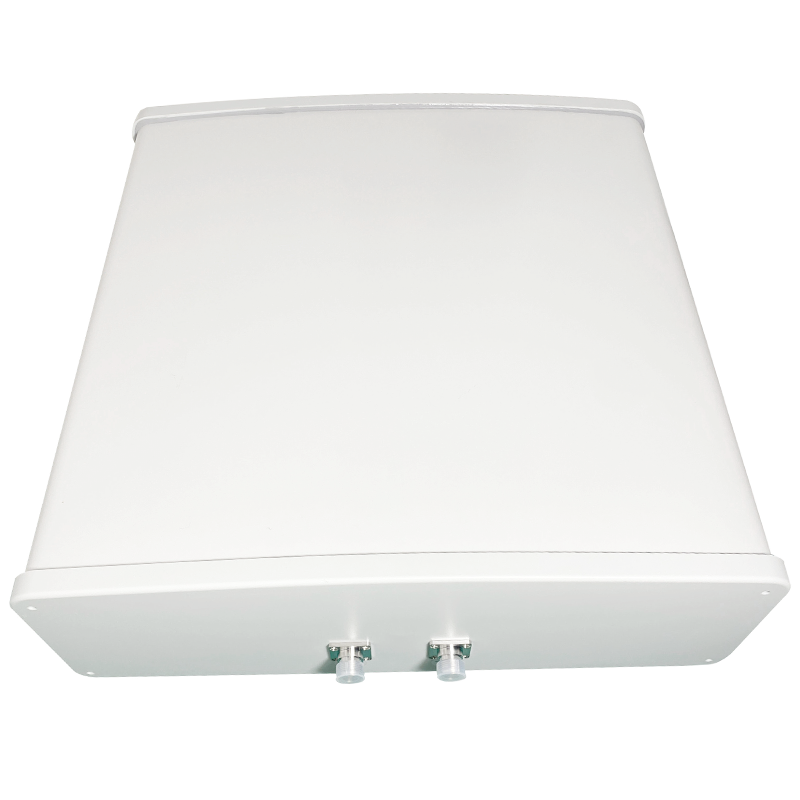

YCPL2P350 800-2700 MHz Dual Polarized MIMO 2-Port Panel Antenna 1
YCPL2P350 800-2700 MHz Dual Polarized MIMO 2-Port Panel Antenna Features 2

YCPL2P350 800-2700 MHz Dual Polarized MIMO 2-Port Panel Antenna

P/N: YCPL2P350
GET A QUOTE

Parameter Value Unit
Frequency Range 890-960 / 1710–2700 MHz
Impedance 50 Ω
VSWR ≤1.5
Polarization ±45°
Gain  8±1 / 12±1 dBi
Max. Power 200 / 200 W
Isolation ≥25 / ≥25 dB
3dB Beamwidth Horizontal – 75±5 / 65±5 °
3dB Beamwidth Vertical – 55±5 / 35±2 °
PIM <-107 @2 × +43 dBm dBc

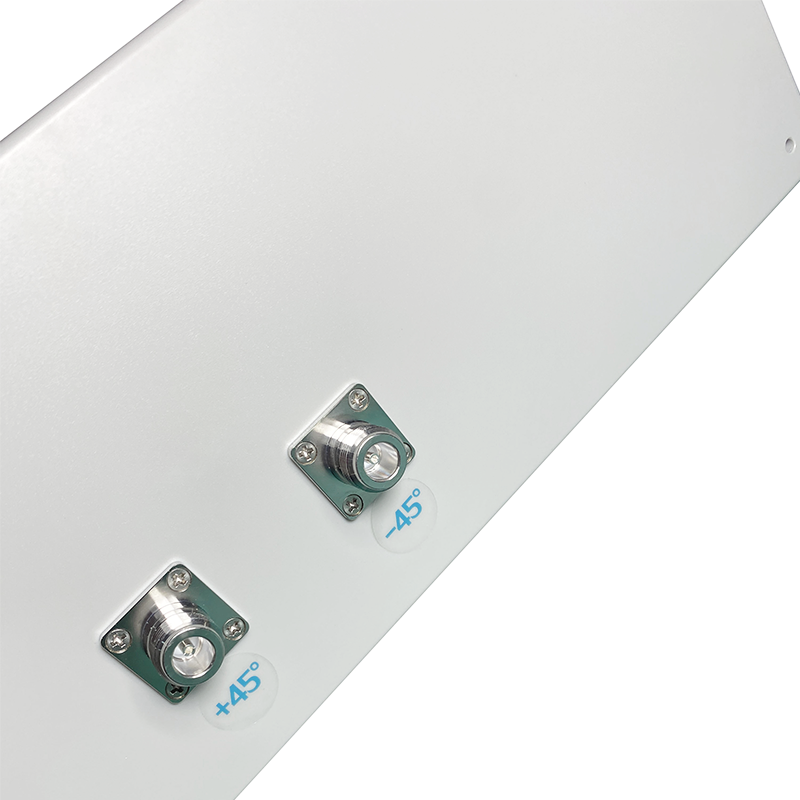

Connector Type 2 × N Female
Mounting Type Pole
Dimensions  (L x W x H) 350 x 280 x 125
Operating Temp. ‐40~+70 ºC
Humidity 5-95 %

The 800–2700 MHz Dual‑Polarized MIMO 2‑Port Panel Antenna is a wideband, operator‑grade solution designed for both macro outdoor coverage and indoor DAS deployments. It supports all major cellular bands, offers high gain, dual‑polarized MIMO performance, low VSWR, and rugged construction, making it ideal for China Unicom’s multi‑system, multi‑band network requirements.

Typical Application Scenarios
These antennas are widely used by operators like China Unicom for multi‑system, multi‑band coverage.

1. Macro / Outdoor Coverage Enhancement

  • Used on macro base stations for LTE/NR 4G/5G overlay
  • Supports 800/900 MHz for wide‑area coverage
  • Supports 1800/2100/2600 MHz for capacity layers
  • Suitable for urban, suburban, and rural deployments

2. Indoor DAS (Distributed Antenna System)

  • Common in malls, airports, office buildings, stadiums
  • Provides broadband 800–2700 MHz coverage for all major cellular systems
  • Supports MIMO to improve indoor throughput and user experience

3. Hotspot & Capacity Sites

  • Used for traffic hotspots such as CBDs, campuses, transport hubs
  • Dual‑polarized MIMO improves spectral efficiency and cell capacity

4. Multi‑Operator / Multi‑System Sharing

  • Wideband design supports 2G/3G/4G/5G coexistence
  • Suitable for shared towers and multi‑operator neutral‑host DAS

⚙️ Key Technical Features
Below is a consolidated, operator‑grade feature set based on typical 800–2700 MHz MIMO panel antennas.

1. Wideband 800–2700 MHz Operation

  • Covers 800/900/1800/2100/2600 MHz
  • Supports all mainstream cellular systems (GSM/WCDMA/LTE/NR)
  • Reduces the number of antennas needed on site

2. Dual Polarization (±45°)

  • 2‑port MIMO with ±45° slant polarization
  • Improves MIMO throughput, reduces fading
  • High polarization isolation (typically ≥18–25 dB)

3. MIMO 2×2 Architecture

  • Supports simultaneous multi‑stream transmission
  • Enhances data rate and network reliability
  • Essential for LTE/5G capacity layers

4. High Gain & Directional Coverage
Typical values (varies by model):

  • Gain: 8–12 dBi (higher at 1710–2700 MHz)
  • Directional beam for targeted coverage
  • Horizontal beamwidth typically 60°–90°
  • Vertical beamwidth 30°–75°

5. Low VSWR & Low PIM

  • VSWR ≤ 1.5 across the band
  • Low PIM ensures stable performance in high‑traffic environments

6. Rugged Outdoor‑Grade Construction

  • Weatherproof radome (ABS/UV‑stabilized)
  • Wind resistance suitable for tower/rooftop mounting
  • Supports wall or pole installation

7. Easy Deployment

  • Compact, lightweight panel design
  • N‑female or 4.3‑10 connectors
  • Compatible with DAS, macro, and small‑cell systems
